Digiplex Evo |
|
| |
|
|
| |
Digiplex and Digiplex EVO systems provide the highest level of protection for banks, high-security military and government sites, luxurious residential homes and any place where maximum security is essential. These systems are designed to be easy to use and the modular concept of these systems provides installers with labour-saving features that make expanding, installing and servicing these systems quick and convenient. |
|
| |
|
|
| |

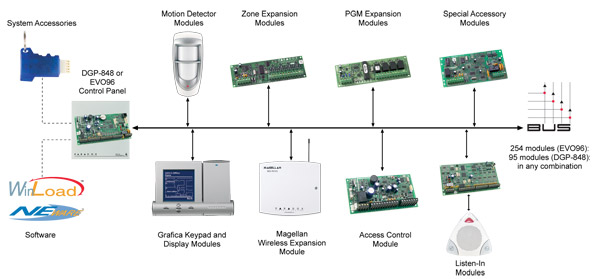

Expand your system by adding plug-and-play expansion modules anywhere and in any combination on the 4-wire combus. Modules are connected to the combus at the most convenient location and then their zone inputs are assigned to the desired zone and partition. Also, only a moduleˇ¦s used inputs are assigned to zones in the system. Keyswitches, remote controls and unused module inputs do not use up zones. Once installed, all combus modules, including motion detectors, can be programmed remotely via a keypad or the WinLoad Installer Upload/Download software.
|
|
| |
|
|
| |
Digiplex and Digiplex EVO also supports virtual zones in addition to its security zones and access control doors. Virtual zones can be used to automate PGM activations without occupying a security zone and without affecting the systemˇ¦s security functions. Digiplex and Digiplex EVO is a logical solution to every installerˇ¦s security, access control and home automation installation needs. |
|
| |
|
|
| |
| |
| Feature |
Digiplex DGP-848 |
Digiplex EVO96 |
| Zones |
48 (16 on board) |
96 (16 on board) |
| Partitions |
4 |
8 |
| User Codes |
96 |
999 |
| Access Control |
32 doors |
32 doors |
| Events Buffered |
1024 |
2048 |
| PGMs |
125 (2 on board) |
250 (3 on board) |
| PGMs |
125 (2 on board) |
250 (3 on board) |
| Virtual Zones |
8 |
32 |
| Expansion Modules |
95 |
254 |
| In-Field Upgradeable |
- |
yes |
| Supports Listen-In Module |
- |
yes |
|
|
|
|
| |
|
|
| |
|
|
